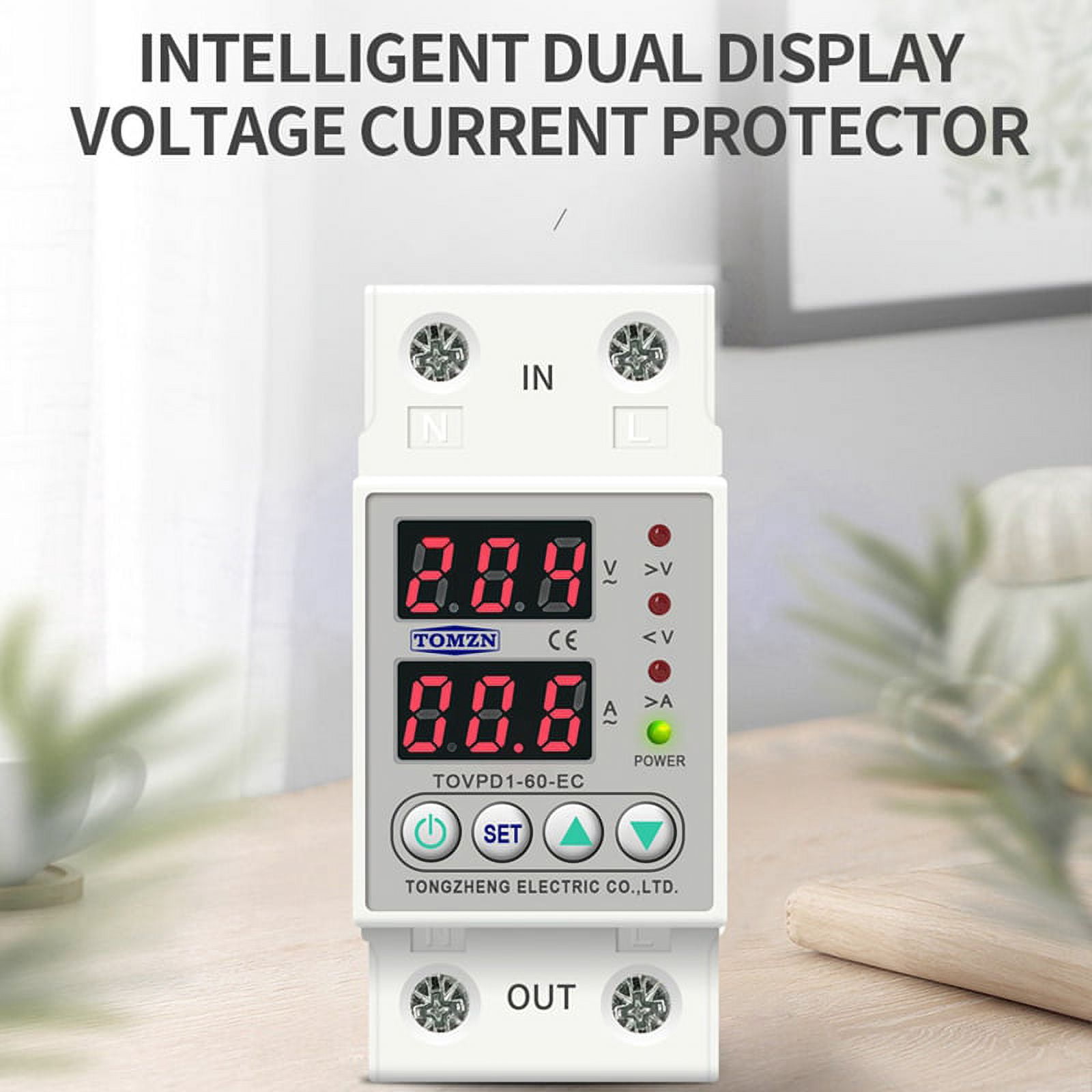

2X Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protector Relay 40A 220V 230V

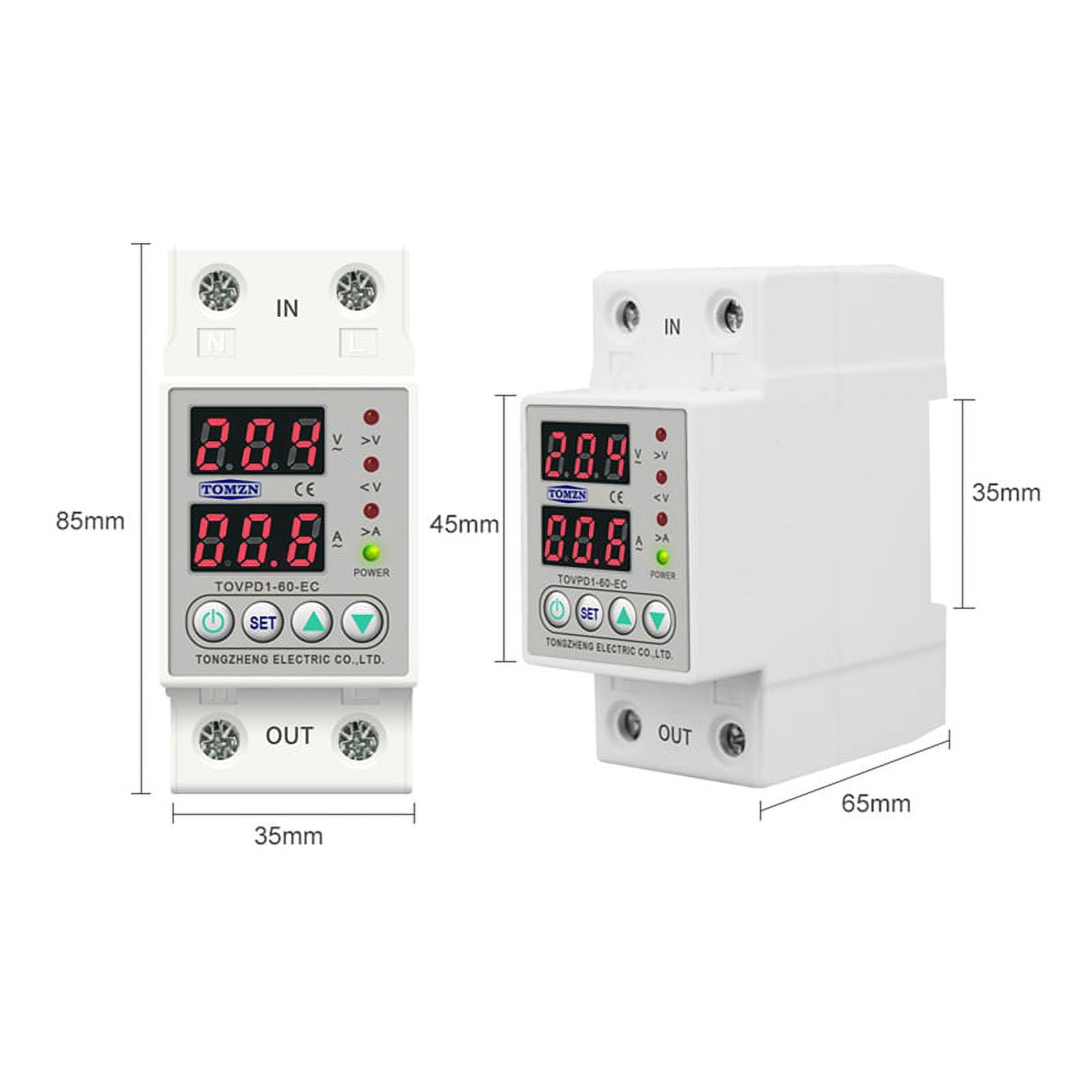

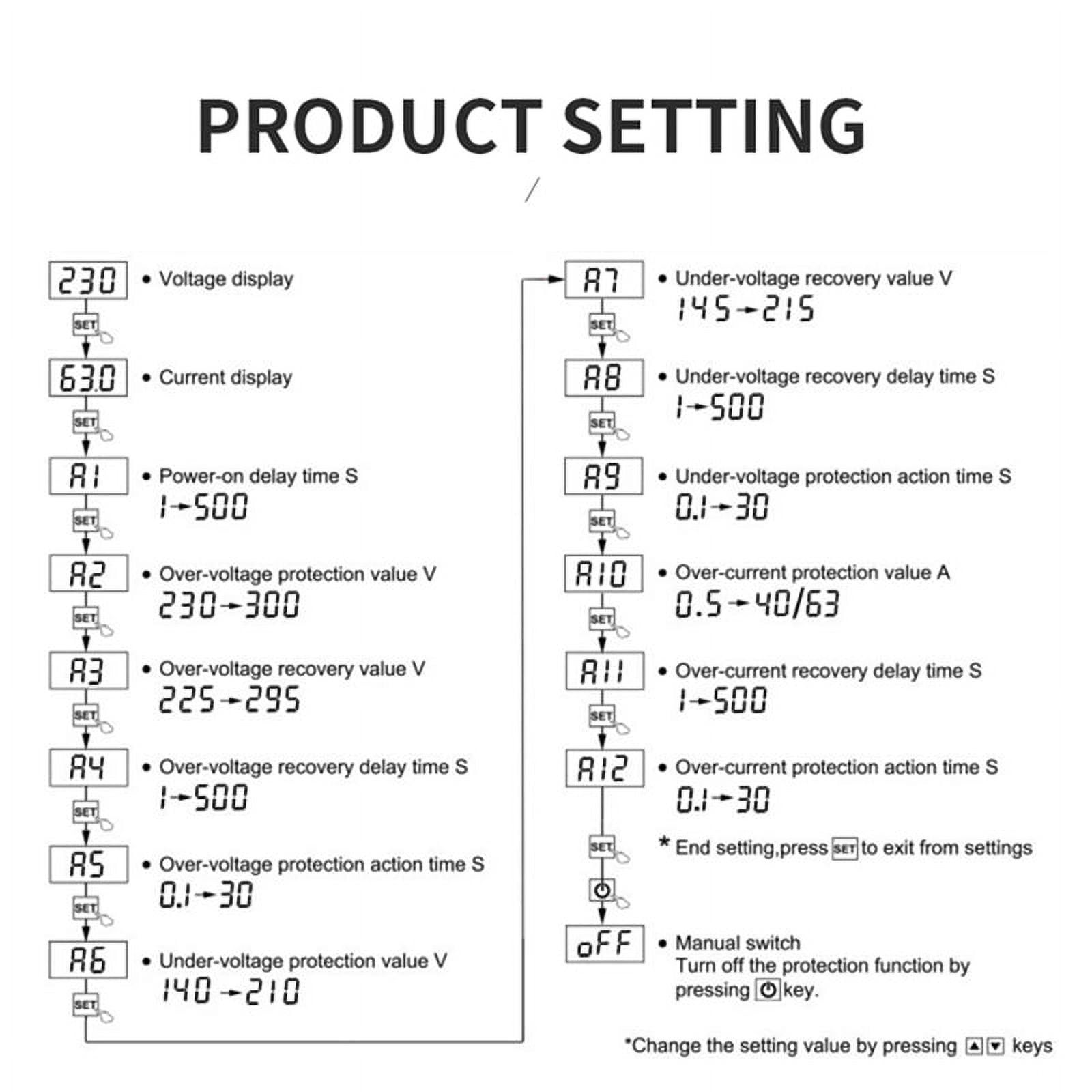

Product Parameters:<br>1.Model number:TOVPD1-60-EC<br>2.Power supply:230VAC 50/60Hz<br>3.Max.Loading power:1~40A Adjustable(default:40A)<br>4.Over-voltage protection value range:230V~300~OFF(default:270V); Over-voltage recovery voltage range:225V--295V(default:250V); Over-voltage protection action time:0.1s~30s(default value:0.5s); Over-voltage recovery delay time:1s~500s(default:30s)<br>5.Under-voltage protection value range:140V--210V --OFF(default:170V); Under-voltage recovery voltage range:145V--215V (default:190V); Under-voltage protection action time:0.1s~30s(default:0.5s); Under-voltage recovery delay time:1s~500s(default:30s)<br>6.Over-current adjustment range:1-40A (default:20A); Over-current action range:0.1~30 second (default:0.5s); Over-currentrecovery delay time:1s~500s(default:30s)<br>7.Power-on delay time:1s~500s(default:10s)<br>8.Power consumption : less than 2W<br>9.Electric machinery life : 100,000 times<br>10.Installation:35mm DIN rail<br>type: 40A<br>colour: white<br>Material: plastic<br>Size: about 85x35x65mm<br><br>Package Contents:<br>2 x Protective Device Protector Relay<br><br>Only the above package content, other are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• 1. Over-voltage protection; Under-voltage protection; Over-current protection; Automatic recovery
• 2. Voltage display(voltage measurement); Current display (current measurement)
• 5. Fault inquiry: the UP button from more than 12S
• 3. Voltage calibration: Voltage +-10% adjustable.
• 4. Restore factory settings: the down button for more than 12s
